Working with Text

Support for working with primitive text is spread between the AWT Graphics, Font,, and FontMetrics classes. Of course, you can save yourself a lot of trouble by using a text-drawing component instead -- a label or text component , for instance.

Java^TM 2 Note: If you are using Java 2 (JDK^TM 1.2), you can use the full-featured text support in the Java^TM 2D API. See the 2D Graphics section in the 2D Graphics trail for more information. However, we still recommend that you avoid drawing your own text, and use a standard Swing component instead.

Painting Text

The Graphics class provides three methods for painting text: drawBytes, drawChars, and drawString. Here is an example of code that paints a string to the screen:
g.drawString("Hello World!", x, y);
For the text painting methods, x and y are integers that specify the position of the lower left corner of the text. To be precise, the y coordinate specifies the baseline of the text -- the line that most letters rest on -- which doesn't include room for the tails (descenders) on letters such as "y". Be sure to make y large enough to allow vertical space for the text, but small enough to allow room for descenders.
Here's a figure that shows the baseline, as well as the ascender and descender lines. You'll learn more about ascenders and descenders a bit later.
Here is a picture of a simple applet that illustrates what can happen when you're not careful about where you position your text:

This is a picture of the applet's GUI. To run the applet, click the picture. The applet will appear in a new browser window.
The top string is probably cut off, since its y argument is 5, which leaves only 5 pixels above the baseline for the string -- not enough for most fonts. The middle string probably shows up just fine, unless you have a huge default font. Most of the letters in the bottom string display fine, except for letters with descenders. All descenders in the bottom string are cut off, since the code that displays this string doesn't allow room for them. You can find the applet's source code in TextXY.java.

Note: The text-painting methods' interpretation of x and y is different from that of the shape-painting methods. When painting a shape (such as a rectangle), x and y specify the upper left corner of the shape's bounding rectangle, instead of the lower left corner.

Getting Information about a Font: FontMetrics

The shape-painting example from Example 2: A Shape Sampler could be improved by choosing a font that's smaller than the usual default font. The following example does this and also enlarges the shapes to take up the space freed by the font's smaller height. Here is a picture of the improved applet:

This is a picture of the applet's GUI. To run the applet, click the picture. The applet will appear in a new browser window.

You can find its code in FontDemo.java. The example chooses the appropriate font by using a FontMetrics object to get details of the font's size. For example, the following loop ensures that the longest string displayed by the applet ("drawRoundRect") fits within the space each shape is allotted.
boolean fontFits = false;
Font currentFont = biggestFont;
FontMetrics currentMetrics = getFontMetrics(currentFont);
int size = currentFont.getSize();
String name = currentFont.getName();
int style = currentFont.getStyle();

while (!fontFits) {
    if ( (currentMetrics.getHeight() <= maxCharHeight)
      && (currentMetrics.stringWidth(longString)
          <= xSpace)) {
         fontFits = true;
    } else {
         if (size <= minFontSize) {
         fontFits = true;
    } else {
         currentFont = new Font(name, style, --size);
         currentMetrics = getFontMetrics(currentFont);
    }
}

The example code above uses the Graphics getFont, setFont, and getFontMetrics methods to get and set the current font and to get the FontMetrics object that corresponds to the font. From the FontMetrics getHeight and stringWidth(String) methods, the example code gets vertical and horizontal size information about the font.

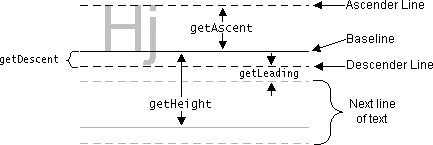

The following figure shows some of the information that a FontMetrics object can provide about a font's size.

Here's a summary of the FontMetrics methods that return information about a font's vertical size:

int getAscent(), int getMaxAscent()
The getAscent method returns the number of pixels between the ascender line and the baseline. Generally, the ascender line represents the typical height of capital letters. Specifically, the ascent and descent values are chosen by the font's designer to represent the correct text "color", or density of ink, so that the text appears as the designer planned it. The ascent typically provides enough room for almost all of the characters in the font, except perhaps for accents on capital letters. The getMaxAscent method accounts for these exceptionally tall characters.

int getDescent(), int getMaxDescent()
The getDescent method returns the number of pixels between the baseline and the descender line. In most fonts, all characters fall within the descender line at their lowest point. Just in case, though, you can use the getMaxDescent method to get a distance guaranteed to encompass all characters.

int getHeight()
Returns the number of pixels normally found between the baseline of one line of text and the baseline of the next line of text. Note that this includes an allowance for leading.

int getLeading()
Returns the suggested distance (in pixels) between one line of text and the next. Specifically the leading is the distance between the descender line of one line of text and the ascender line of the next line of text. By the way, leading is pronounced LEDDing.

Note that the font size (returned by the Font class getSize method) is an abstract measurement. Theoretically, it corresponds to the ascent plus the descent. Practically, however, the font designer decides exactly how tall a "12 point" font (for example) is. For example, 12-point Times is often slightly shorter than 12-point Helvetica. Typically, font size is measured in points, which are approximately 1/72 of an inch.
The following list shows the methods that FontMetrics provides to return information about the horizontal size of a font's characters. These methods take into account the spacing around each character. More precisely, each method returns not the number of pixels taken up by a particular character (or characters), but the number of pixels by which the current point will be advanced when that character (or characters) is shown. We call this the advance width to distinguish it from the character or text width.

int getMaxAdvance()
The advance width (in pixels) of the widest character in the font.
int bytesWidth(byte[], int, int)
The advance width of the text represented by the specified array of bytes. The first integer argument specifies the starting offset of the data within the byte array. The second integer argument specifies the maximum number of bytes to check.
int charWidth(int), int charWidth(char)
The advance width of the specified character.
int charsWidth(char[], int, int)
The advance width of the string represented by the specified character array.
int stringWidth(String)
The advance width of the specified string.
int[] getWidths()
The advance width of each of the first 256 characters in the font.
